Microsoft Teams Notifications

To enable Microsoft Teams notifications, you need to set up a connector webhook url and set the appropriate configuration property.

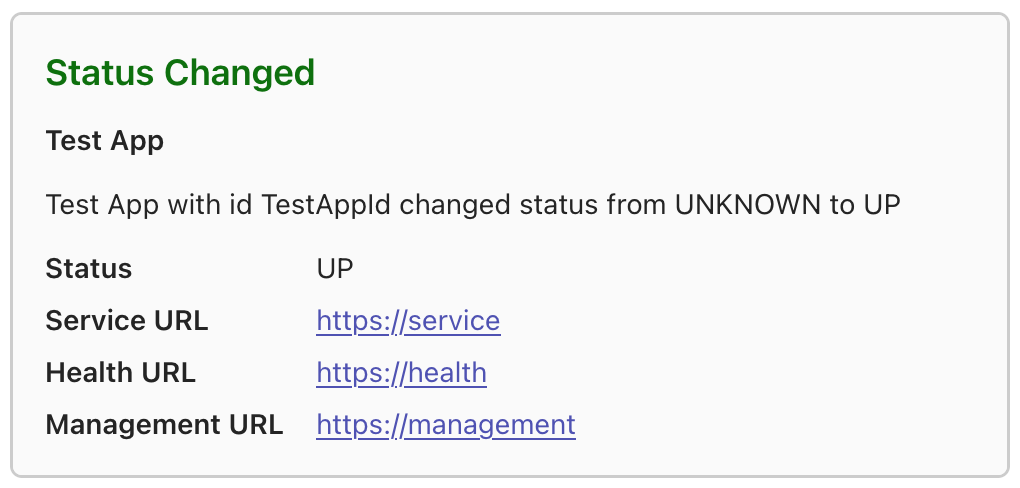

Sample Microsoft Teams notification for a STATUS_CHANGED event

Message format

Notifications are sent as Adaptive Cards. The card body is composed of the title, the instance name, the text and a FactSet containing the instance's status and URLs.

SpEL expression context

The expression-based properties are parsed as SpEL template expressions (#{ ... }). The following root variables are available:

Variable	Type	Description
event	InstanceEvent	The event that triggered the notification. Frequently used property: type (one of REGISTERED, DEREGISTERED, STATUS_CHANGED, REGISTRATION_UPDATED, INFO_CHANGED, ENDPOINTS_DETECTED). For STATUS_CHANGED events event.statusInfo.status holds the new status.
instance	Instance	The full instance aggregate. Frequently used paths: instance.id (e.g. "TestAppId"), instance.registration.name (e.g. "Test App"), instance.statusInfo.status (one of UP, DOWN, OFFLINE, RESTRICTED, OUT_OF_SERVICE, UNKNOWN).
lastStatus	String	The previous status code of the instance (e.g. UP, DOWN, UNKNOWN), useful for building messages like from #{lastStatus} to #{event.statusInfo.status}.

Microsoft Teams notifications configuration options

Property
spring.boot.admin.notify.ms-teams.enabled Enables the notification. Type:  java.lang.Boolean Default:  true
spring.boot.admin.notify.ms-teams.webhook-url Webhook url for Microsoft Teams Channel Webhook connector (i.e. ...{webhook-id}) Type:  java.lang.String
spring.boot.admin.notify.ms-teams.ignore-changes List of changes to ignore. Must be in Format OLD:NEW, for any status use * as wildcard, e.g. *:UP or OFFLINE:* Type:  java.lang.String[] Default:  ["UNKNOWN:UP"]
spring.boot.admin.notify.ms-teams.registered-title Title of the Teams message when an app registers Type:  java.lang.String Default:  "Registered"
spring.boot.admin.notify.ms-teams.deregistered-title Title of the Teams message when an app deregisters Type:  java.lang.String Default:  "Deregistered"
spring.boot.admin.notify.ms-teams.status-changed-title Title of the Teams message when an app changes status Type:  java.lang.String Default:  "Status Changed"
spring.boot.admin.notify.ms-teams.title-color-expression Expression for the color of the message title, see supported colors Type:  java.lang.String
spring.boot.admin.notify.ms-teams.registered-text-expression Expression for the text that will be displayed when an app registers Type:  java.lang.String
spring.boot.admin.notify.ms-teams.deregistered-text-expression Expression for the text that will be displayed when an app deregisters. Type:  java.lang.String
spring.boot.admin.notify.ms-teams.status-changed-text-expression Expression for the text that will be displayed when an app changes status Type:  java.lang.String
